This is my custom rom version for 10 inch tablet PICOpad GJE3 model. I dump from the stock rom, take it as a base port and add a little tweak here and there, optimize this and that, also add a root and superuser. Here is the complete features :
Features :
- Android 4.2.2 with 3.4.5 kernel
- Rooted, busybox, fully deodexed, zipaligned
- rooted boot.img
- init.d support + busybox run parts
- gps, bt, hsdpa tweak
- Superuser by Clockworkmod (thanks to Koush)
- Xposed framework (thanks to rovo89 and Tungstwenty)
- GravityBox customization module (thanks to C3C076)
- … something i forgot to list
And here we go the custom rom :
Download : picopad_gje3_signed_022514_144635.zip
MD5 : ec3d9d11b95aa35717cb2967cd3e4836
And here is the steps to flash this custom rom :
Requirement and Preparation :
- Read this thoroughly :
Your warranty is now void !!!
I am not responsible if you brick your phone, get stuck in a bootloop, or if your phone grows arms and tries to kill you. Flash at your own risk!
Please do some research if you have any concerns about risk of flashing a custom rom before continuing! YOU are choosing to make these modifications, and if you point the finger at me for messing up your device, I will laugh at you!!
If you have any other objection, don’t bother to comment, just close this page! - This custom rom need a custom recovery to flashed into the device, if you haven’t got it, get it here : cwm recovery for PICOpad GJE3
Flashing Process :
The steps to flash this custom rom is pretty straight forward :
- Download the custom rom from link above and copy it to the root of your sdcard, you may check it first with your file manager to confirm it was there. There are two sdcard storage on this device, so you must know it’s at the internal sdcard or external sdcard. I prefer you to put this on external sdcard to avoid any difficulties.
- Boot into recovery mode. I believe there are no key shortcut (at least I cannot find it) for this model to enter the recovery mode from off position. So you have to use QuickBoot or RecoveryTool apk from playstore (it needs root) to enter the recovery mode.
- BACKUP your stock rom and data using BACKUP feature, make sure you use external storage as destination because this backup is relatively big.
- Choose Wipe Data / Factory reset and execute it.
- Choose Wipe cache partition and execute it
- Choose Wipe Dalvik Cache and execute it
- Go back to main menu, and choose Install
- It will open a list of file on your sdcard, choose the custom rom zip file that you put on step 1 and flash it.
- After the installation completed, choose Reboot System
- Done

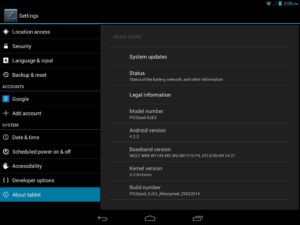

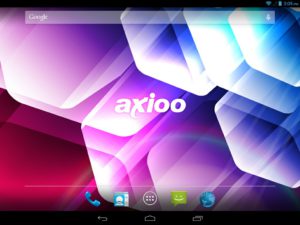

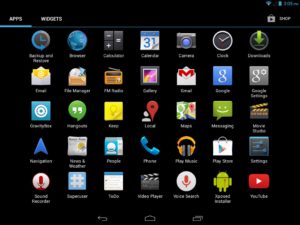

Here is the result after flash :
How to use the Xposed Framework and Gravity box
I create separate page to explain this so i don’t have to copy paste everytime, Go here.
Enjoy your PICOpad GJE3 !
